Xzh Test Xhdp Series 30-90kv Ultra-Low Frequency High Voltage Generator for Applications

Model NO. : XHDP series

Power : Electricity

Certification : CE, ISO

Customized : Customized

Color : Black

Output Voltage : 30kv/50kv/60kv/80kv/90kv Optional

Output Frequency : 0.1Hz, 0.05Hz,0.02Hz Automatic Frequency Conversio

Accuracy : 3%

Power Supply for Work : 50/60Hz, AC220V±10%

Certificate : ISO, CE

Transport Package : Wooden Box with Foam Inside

Trademark : XZH TEST

Origin : China Xi&an

Supply Ability : 1000

Customization : Available

After-sales Service : Warranty

Warranty : 12mouth

Shipping Cost : Contact the supplier about freight and estimated delivery time.

: Support payment in USD

Secure payments : Every payment you make at Made-in-china.com is protected by the platform.

Refund policy : Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Contact Now

VLF AC Cable Hipot Tester
(very low frequency high voltage cable withstand voltage tester)

Xzh Test Xhdp Series 30-90kv Ultra-Low Frequency High Voltage Generator for Applications

Your logo can be put on the panel of the equipment.Each equipment got a series number.

Features:

This XHDP Series VLF AC cable hipot tester adopts digital frequency conversion technology, single-chip microcomputer control,voltage boost, buck, measurement, protection completely automatic. Due to the full electronic, so small size and light weight, the use of large screen color touch display, clear and intuitive, simple operation, display output waveform. The design index conforms to the national standard of "General Technical Conditions of Ultra-low frequency high voltage generator". The main features are as follows:
1 .The ultra-low frequency with rated voltage less than or equal to 60kV adopts a single link structure (a booster); The ultra-low frequency of more than 60kV adopts a series structure (two booster in series), which greatly reduces the overall weight and enhances the load capacity, and the two booster can be used separately to achieve a multi-purpose machine.
2 .Current and voltage data are sampled directly from the high voltage side, so the data is accurate.
3 .Intelligent comprehensive protection function: there is no need to set the current and voltage protection value, the instrument can calculate the overvoltage and overcurrent protection value according to the size of the test capacity and the test voltage value, and can also protect the voltage and current mutation, so it can capture the discharge situation. The protection operation time is less than 20ms.
4 .150kV high voltage line output, safe and reliable.
5 .Because of the closed-loop negative feedback control circuit, the output has no capacity rise effect.

Main technical parameters of the tester:

Specification
Rated voltage	Carrying capacity	Application range	Remark
30kV(peak)	Automatic frequency change:0.1Hz-0.01Hz On-load capacity:<=10µF	Used for voltage test of cables and motors within 10KV	Customizable touch screen with USB port
40kV(peak)	Automatic frequency change:0.1Hz-0.01Hz On-load capacity:<=10µF	Used for voltage test of cables and motors within 10KV
50kV(peak)	Automatic change frequency: 0.1Hz-0.01Hz Load capacity: <=6µF	Used for voltage test of cables and motors within 15KV	Customizable touch screen with USB port
60kV(peak)	Automatic change frequency: 0.1Hz-0.01Hz Load capacity: <=5µF	Used for voltage test of cables and motors within 25KV	Can be customized with dielectric loss tester
80kV(peak)	Automatic change frequency: 0.1Hz-0.01Hz Carrying capacity: <=6µF(within 50kV), <=4µF(above 50kV)	Used for voltage resistance test of cables and motors within 35KV	Customizable touch screen with USB port

Output rated voltage	30kV-80kV The different specifications are shown in above Table
Output frequency	Automatic conversion range: 0.1Hz-0.01Hz
Carrying capacity	See above Table
AC voltage resolution	0.1kV
Voltage accuracy	3%
AC current resolution	0.1mA
AC current accuracy	3%
Voltage positive and negative peak error	≤ 3%
Voltage waveform distortion	≤ 3%
Conditions of use	indoor and outdoor; Temperature: -10ºC∽+40ºC; Humidity: ≤ 85%RH
Input power	Frequency 50Hz, voltage 220V±5%(or frequency 60Hz, voltage 110V±5%). If the micro generator is used for power supply, the frequency conversion generator should be used, and the ordinary generator can not be used, because the ordinary generator speed is unstable, which will make the boost voltage abnormal and damage the instrument.

Main structure of ultra-low frequency high voltage power supply(VLF hipot tester)

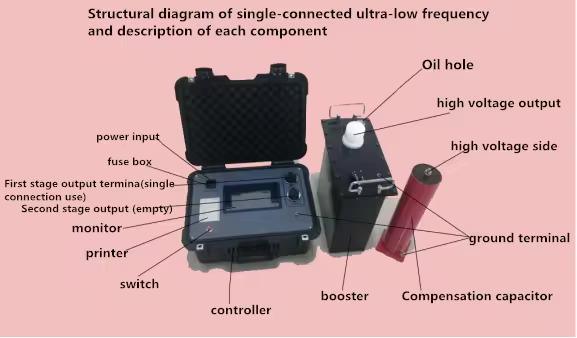

For the VLF hipot tester with a rated voltage below 50kv, a booster is used, which is called the single-coupled ultra-low frequency, and its structure and components are described in the following figure:

For VLF hipot tester with rated voltage above 50kv, two boosters are used in series, which is called series ultra-low frequency, and its structure and components are described in the following figure:

Connection method for ultra-low frequency withstand voltage test

(1) The connection method of ultra-low frequency voltage withstand test when the two-stage booster is connected in series is as follows:

(2)Below 50kV single-link ultra-low frequency voltage test connection mode is as follows:

Test interface reference

Xzh Test Xhdp Series 30-90kv Ultra-Low Frequency High Voltage Generator for Applications

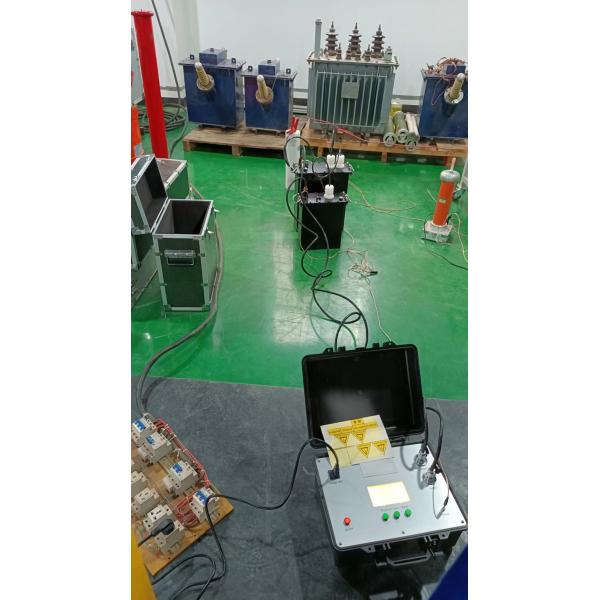

The following photos are the physical pictures of the 50kV VLF hipot tester

If you would like to know more product related information, please contact us
